Cutting ranges
0° round (pipe): 300 mm
0° round (full material): 180 mm
0° rectangle horizontal (hollow): 320 x 190 mm
0° bundle (pipe): 320 x 160 mm
-45° round (full material): 110 mm
-45° rectangle horizontal (hollow): 300 x 280 mm
-60° round (pipe): 200 mm
-60° round (full material): 80 mm
-60° rectangle horizontal (hollow): 190 x 200 mm
Dimensions and weights
Length approx.: 2240 mm
Width/depth approx.: 2710 mm
Height approx.: 2050 mm
Weight approx.: 904 kg
Electric Data
Supply voltage: 400 V
Mains frequency: 50 Hz
Machine data
Saw band speed(s): 20 - 100 m/min
Gears: 2
Saw band length: 3660 mm
Saw band width: 27 mm
Saw band thickness: 0,9 mm
Material feed
Table height material feed: 800 mm
Material diameter min.: 20 mm
Min. remaining workpiece length automatic: 115 + 20 mm

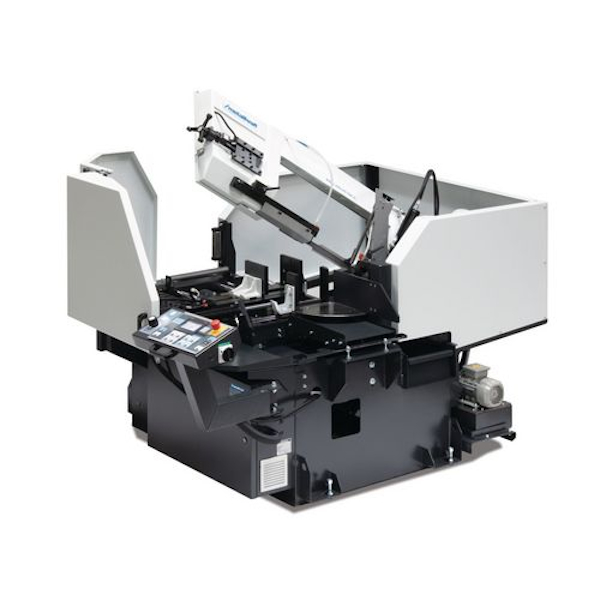

Bandslípivél MBSM 75-200-1For sawing e.g. stainless steel, tool steel, hollow profiles and solid materials
Precise and robust tape guides with adjustable HM plates
Monitoring of saw blade tension electromechanically via microswitch
With cooling system on the saw band guides
With chip removal brush for optimum cleaning and maintenance of the saw blade
When lifting the saw arm, the lowering cylinder locks automatically in the upper position - an additional shut-off on the cylinder is not required
Saw arm tilted by 25°, thus longer blade life
After the cutting process, the saw blade stops automatically
Lowering the saw arm by own weight or manually (H-DG)
For sawing e.g. stainless steel, tool steel, hollow profiles and solid materials
With fully hydraulic controlled sawing functions
Saw blade drive with low-maintenance, oil-lubricated worm gear
With robust three-phase motor
Motor equipped with overload protection
Ball-bearing turntable
After starting the cutting cycle, the vice clamps automatically - after completion of the process it goes back to the starting position (HA-DG)
Saw arm tilted by 25 °, thus longer blade life
Swiveling saw arm from + 60 ° to -45 °
With chip removal brush for optimal cleaning and maintenance of the saw blade
With frequency converter: allows stepless adjustment of saw blade speed from 20 - 100 m / min.
BRP saw blade monitoring
Hydraulic vice with manual quick release for lateral adjustment
Limit switches control the upper and lower position of the saw arm
No adjustment of the upper end point necessary
For sawing stainless steel, tool steel, hollow profiles and solid materials
With hydraulically controlled sawing functions
Wired remote control to start the machine and to lower the saw arm
Saw arm tilted by 25 °, thus longer blade life
Swiveling saw arm from + 60 ° to -45 °
Saw blade drive with low-maintenance, oil-lubricated worm gear
Robust three-phase motor equipped with overload protection
Ball-bearing turntable
Chip removal brush for optimal cleaning and maintenance of the saw blade
Vise with manual quick release device of the material and quick release device for lateral adjustment of the vise
Hydraulically controlled system for both vices, the movement of the material feed and the working steps of the saw arm
Ball-bearing turntable
Standard with frequency converter for stepless adjustment of saw blade speed from 20 - 100 m/min
BRP saw band surveillance
The jaws of the two vices are equipped with long-stroke hydraulic cylinders as standard, eliminating the need to pre-set on the material cross-section to be sawn
With a swiveling cutting gap with miter adjustment - so it does not cut into the saw table
Material feed takes place via a ball screw
