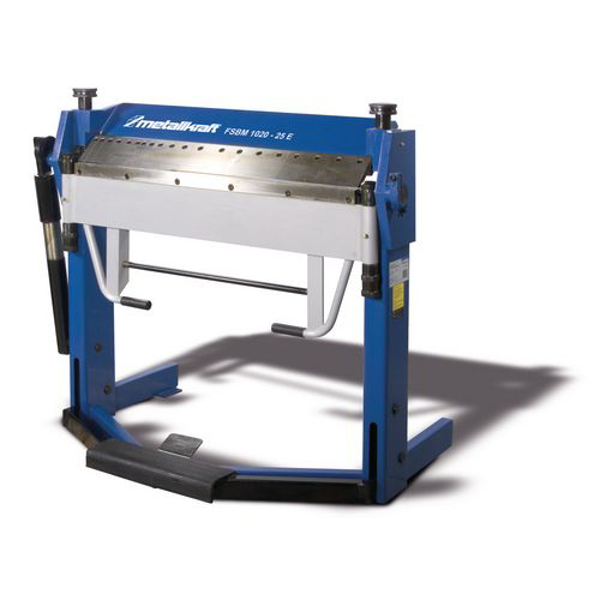

Beygjuvél FSBM 1020-25E

Hámarks breidd vinnusvæðis: 1020 mm
Hámarks beygjugráða: 135 °
Klossastærð: 25-30-35-40-45-50-75-100-150-200-270 mm

Beygjiugeta:

Stál 2,5mm

Ál 3,0mm

Ryðfrítt 1,5mm

Vörumerki: Metallkraft

Staða á vöru: Uppselt

Vörunúmer: SR3772125

469.774 kr.

Fjöldi: decrease increase

The workpiece clamping by means of foot pedal thereby both hands remain free for the material supply
Different tool variants available E, S2, HS2 and HSG
The powerful auxiliary cylinder facilitates bending
Next passage between top and bottom cheek of up to 25 mm
Self-lubricating plain bearings
Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
Adjustment of material thickness by means of knurled screw
Adjustable stop for bending angle

Sheet thickness max.: Performance data based on material with tensile strength 400 N/mm²
Bending capacity VA: factor 0.75
Bending capacity aluminum: factor 1.2
Hardened top tools are required to bend VA
