Max. working width: 1270 mm
Max. bending angle: 135 °
Segmentation: 25-30-35-40-45-50-75-100-150-200-250-270 mm
Dimensions and weights
Length approx.: 1600 mm
Width/depth approx.: 800 mm
Height approx.: 1130 mm
Weight approx.: 370 kg
Max. sheet thickness
Steel 235N/mm²: 2,0 mm
Steel 400N/mm²: 2,0
Stainless steel: 1,2 mm
Max. sheet thickness aluminium: 2,4 mm
Hardened top tools are required to bend VA, stainless steel

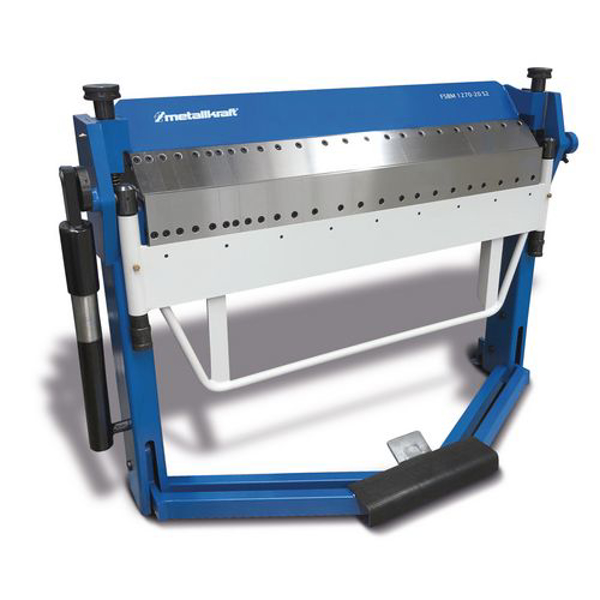

BeygjuklossiThe workpiece clamping by means of foot pedal thereby both hands remain free for the material supply
Different tool variants available E, S2, HS2 and HSG
The powerful auxiliary cylinder facilitates bending
Next passage between top and bottom cheek of up to 25 mm
Self-lubricating plain bearings
Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
Adjustment of material thickness by means of knurled screw
Adjustable stop for bending angle
Sheet thickness max.: Performance data based on material with tensile strength 400 N/mm²
Bending capacity VA: factor 0.75
Bending capacity aluminum: factor 1.2
Hardened top tools are required to bend VA
The workpiece clamping by means of foot pedal thereby both hands remain free for the material supply
Different tool variants available E, S2, HS2 and HSG
The powerful auxiliary cylinder facilitates bending
Next passage between top and bottom cheek of up to 25 mm
Self-lubricating plain bearings
Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
Adjustment of material thickness by means of knurled screw
Adjustable stop for bending angle
Note on technical data:
Sheet thickness max.: Performance data based on material with tensile strength 400 N/mm²
Bending capacity VA: factor 0.75
Bending capacity aluminum: factor 1.2
Hardened top tools are required to bend VA
