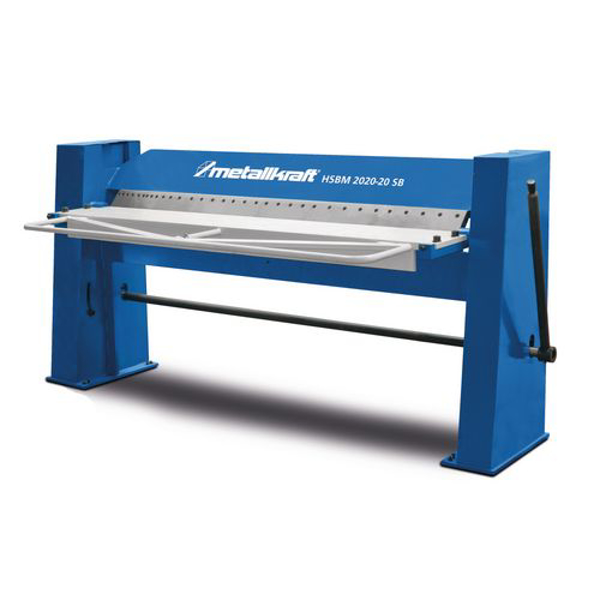

Beygjuvél HSBM 2020-20 SB

Max. working width: 2020 mm
Max. passageway between top + bottom beam: 120 mm
Max. bending angle: 135 °
Segmentation: 25-30-35-40-45-75-100-150-200-200-270-400-400 mm

Dimensions and weights
Length approx.: 2500 mm
Width/depth approx.: 710 mm
Height approx.: 1500 mm
Weight approx.: 1020 kg

Max. sheet thickness
Steel 400N/mm²: 2 mm
Stainless steel: 1,5 mm
Max. sheet thickness aluminium: 2,4 mm

Vörumerki: Metallkraft

Staða á vöru: Uppselt

Vörunúmer: SR3772920

Sérpöntun

Vinnslubreidd: 1300mm
Mesta þykkt í áli: 1.2mm
Beygjuradíus:135°
Þyngd: 88kg
Stærð: 1480x570x970mm
Easy handling.
Heavy, compact welded construction.
Particularly low maintenance.
With continuous sharp bending rail.
For easy bending with exact adjustment of the bending angle by means of a stop with scale.
Sheet thickness adjustable via bending beam S-models.
With segmented upper tools SH models.
Quality Made in Europe.
Easy handling
segmented upper tools
Swivel bending function with secure clamping of the workpiece by preloading the upper beam
heavy, compact welded construction
For easy bending with exact adjustment of the bending angle by means of a stop with scale
particularly low maintenance

segment breakdown

25-30-35-40-45-75-100-150-200-200-270-400-400

Note on technical data:

Sheet thickness max .: Performance data based on material with tensile strength 400N / mm²; Bending capacity VA: factor 0.75; Bending capacity Alu: factor 1,2; Hardened top tools are required to bend VA
