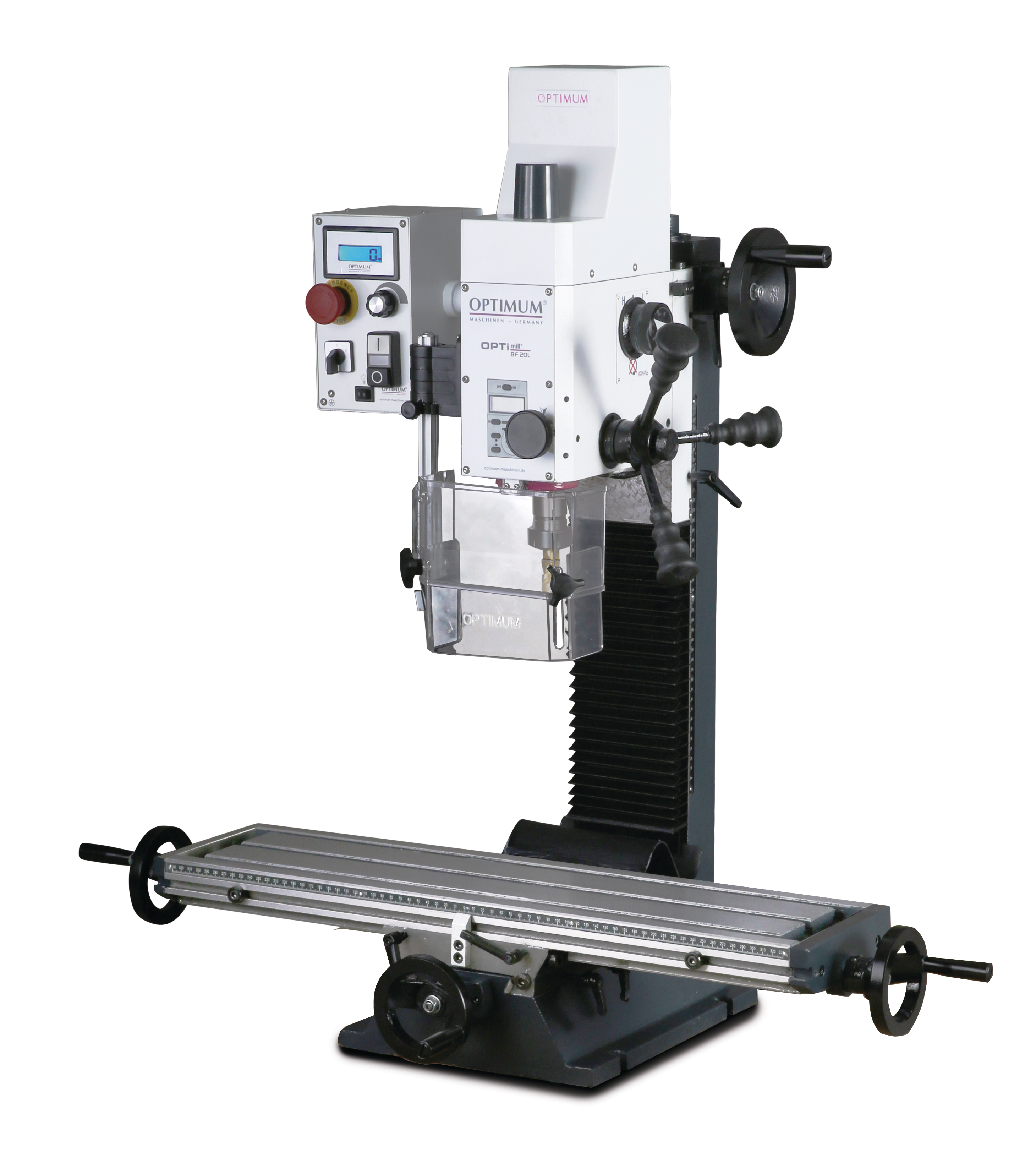

Fræsivél BF 20LVario

Afl: 850 W 240V
Snúningshraði: 90 – 1480 / 150 – 3000min
Borgeta í stál(S235JR): 16mm
Mesta þvermál fræs:63mm
Spindilfærsla: 280mm
Spindill: MT2/M10
Borð: 700x180mm
Burðargeta borðs: 40kg
Stærð: 945 x 565 x 935mm
Nettóþyngd: 112kg

Vörumerki: Optimum

Staða á vöru: Á lager

Vörunúmer: OM3338122

295.995 kr.

Fjöldi: decrease increase

Feed spindles can be adjusted backlash-free using adjustable spindle nuts
Stable dovetail guide, precision-ground and scraped with adjustable gibs
EMC filter (to protect sensitive electronics from interference from conducted interference signals class B)
All guides are ground and visibly scraped (oil pockets for lubrication)
Precisely machined
Two-stage gear ratio for powerful transmission of motor power
Powerful DC motor with permanent current monitoring
Double-row angular contact ball bearings in the axles, adjustable without play
Safety electrics in 24 volt version
Bellows as guide protection
Right/left rotation
Drilling and milling head can be tilted by ± 900 for milling and drilling work at any angle
Height-adjustable protective screen with microswitch, against flying chips and parts, for maximum protection of the user

Vörulýsing
Senda fyrirspurn

Feed spindles can be adjusted backlash-free using adjustable spindle nuts
Stable dovetail guide, precision-ground and scraped with adjustable gibs
EMC filter (to protect sensitive electronics from interference from conducted interference signals class B)
All guides are ground and visibly scraped (oil pockets for lubrication)
Precisely machined
Two-stage gear ratio for powerful transmission of motor power
Powerful DC motor with permanent current monitoring
Double-row angular contact ball bearings in the axles, adjustable without play
Safety electrics in 24 volt version
Bellows as guide protection
Right/left rotation
Drilling and milling head can be tilted by ± 900 for milling and drilling work at any angle
Height-adjustable protective screen with microswitch, against flying chips and parts, for maximum protection of the user
