Dimensions and weights
Length approx.: 1500 mm
Width/depth approx.: 1450 mm
Height approx.: 2200 mm
Weight approx.: 1150 kg
Drilling/milling output
Max. size milling head: 100 mm
Max. size shaft milling cutter: 20 mm
Drilling performance steel (S235JR): 32 mm
Continuous drilling performance steel (S235JR): 28 mm
Electric Data
Supply voltage: 400 V
Mains frequency: 50 Hz
Coolant pump(s) drive power: 100 W
Total rated value: 4 kW
Milling table horizontal
Table length: 1370 mm
Table width: 254 mm
Min. clearance vertical spindle - milling table: 40 mm
Max. clearance vertical spindle - milling table: 446 mm
T-groove size: 16 mm
T-groove number: 3
T-groove spacing: 63 mm
Max. load bearing capacity: 275 kg
Travel
X axis manual: 900 mm
Y axis manual: 320 mm
Z axis manual: 365 mm
X axis automatic: 800 mm
Z axis automatic: 305 mm
Vertical spindle
Reach: 200 - 680 mm
Spindle chuck: ISO 40 DIN 2080
Speed range: 9 - 6750 min¯¹
Number of gears: 8
Speed control: electronically adjustable
Vertical spindle normal operation: 3 kW
Swivel range milling cutter head Z - X plane: ± 45 °
Quill stroke: 127 mm
Spindle sleeve feed: 0,04 / 0,08 / 0,15 mm/rev
Standards and certifications
StandardDIN EN 55011
EMC levelC2
FRÆSITÖNN TCT 3 mm í RA17DTækniupplýsingar:
Afl: 850/1500W/400V
Snúningshraði: 95-3200sn/mín
Borgeta í stál(S235JR): 32mm
Mesta þvermál fræs: 28mm
Spindilfærsla: 120mm
Spindill: MK4
Kverk: 275mm
Borð: 800x240mm
Burðargeta borðs: 80kg
Stærð: 1100 x 850 x 1150mm
Nettóþyngd: 320kg

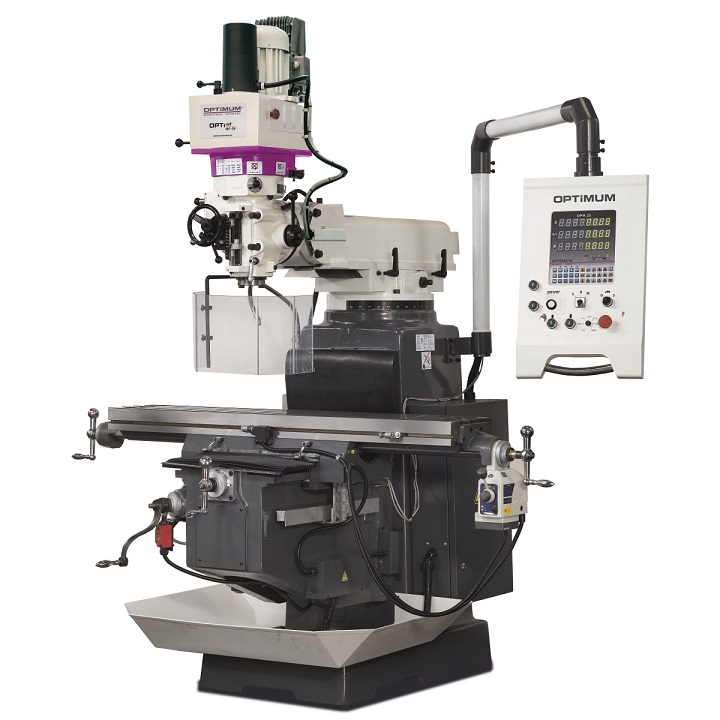

Heavy, solid design made of high-quality Meehanite cast iron
Drilling frictional head inclinable ± 45 °
High concentricity due to tapered roller bearing, measured smaller than 0.01 mm in the quill
Automatic quill feed
Adjustable drilling depth stop with millimeter scale, front readable
Right / left rotation for thread cutting
X- and Z-axis with adjustable dovetail guide
Coolant system
Height-adjustable protective screen with micro-switch, against flying chips and parts, for maximum protection of the user
Massive and large-dimensioned XY stage, precisely surface-finished with T-slots
Y-axis with flat guide
Large travel Y-axis of 400 mm
Motorized table height adjustment (Z-axis)
Siemens SINAMICS G110M converter
Due to compact design especially EMV contracted
Internal security features
made in EU
OPTI control panel:
Integrated control panel
Integrated digital position indicator DPA 21 with speed display
