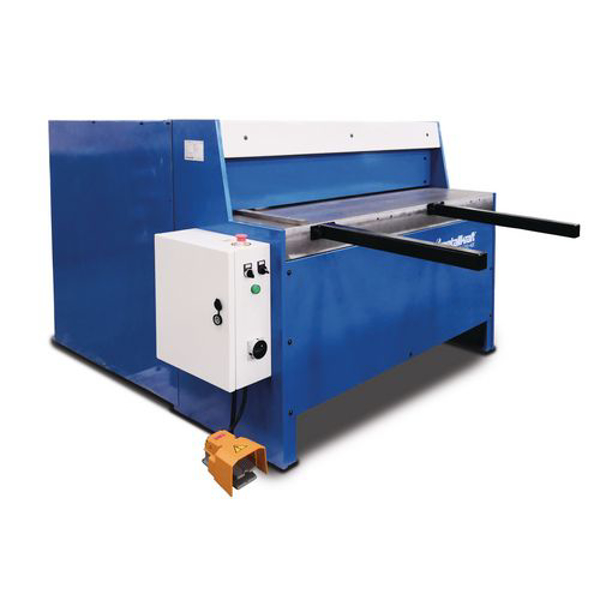

Max. cutting length: 1250 mm
Cutting performance for material tensile strength 400 N/mm²: 4 mm
Cutting performance for material tensile strength 700 N/mm²: 2
Rear stop adjustment range up to: 630 mm
Cutting angle: 2,4 °
Max. strokes for full cutting length: 30 /min
Number of sheet support arms: 2 St
Dimensions and weights
Length approx.: 1712 mm
Width/depth approx.: 1605 mm
Height approx.: 1190 mm
Weight approx.: 1185 kg
Electric Data
Supply voltage: 400 V
Mains frequency: 50 Hz
Suitable for cutting steel and non-ferrous metals
Heavy, stress-free welded steel construction
High quality knife
Sheet metal support arms for large workpieces
Cut line illumination and long holes in the upper cover plate for an optimal view of the cutting edge for cutting on scratches
Manual back gauge 600 mm with millimeter precision adjustment
Photocell for the backgauge area
The foot control leaves both hands free for the material supply
Mesta þykkt ál: 1.6
Mesta þykkt stál: 1.2
Loftnotkun: ca. 420l/mín
Hámarksþrýstingur: 6.3bör
Þyngd: 1.3kg
NC CybTouch 8 touch screen in the swivel arm
NC controlled back gauge (5-1000mm) driven by ball screws
Safety light barrier for the rear compartment
Motorized cutting gap adjustment via the control
Side stop 1500mm with scale and T-slot
Two front support arms 1000mm
Transfer balls in the table for easier material handling
Hold-down with plastic caps to protect the material
Variable cutting length adjustment via the control
Folding finger guard 1000mm with Plexiglas inserts
Sheet metal slide in the back space
Cut line lighting with silhouette
Knife suitable for cutting stainless steel
Top knife with 2 and lower knife with 4 cutting edges
Electrical components from Siemens and Mitsubishi
Hydraulic components Bosch Rexroth and Hydac
Possible equipment options:
Pneu Automatic sheet metal holding systems
Front light barrier instead of finger guard
Adjustable angle stop
Cutting line display by laser
Servo motor for backgauge
Manual or automatic centralized lubrication
Air conditioner for the control cabinet
Oil cooler or oil warmer
Special colors
Replacement knives / special knives
Hægt að skoða nánar hér:
https://www.stuermer-machines.com/search/productdetail/?tx_stuermerprodukte_pi1%5Baction%5D=show&tx_stuermerprodukte_pi1%5Bcontroller%5D=Produkt&tx_stuermerprodukte_pi1%5Bprodukt%5D=4205031&tx_stuermerprodukte_pi1%5Btaxo%5D=10003&tx_stuermerprodukte_pi1%5Bsearch%5D=1&tx_stuermerprodukte_pi1%5BL%5D=1&cHash=55f68ef97d3913aa3b7ab196185234df
Max. cutting length: 1250 mm
Cutting performance for material tensile strength 400 N/mm²: 4 mm
Cutting performance for material tensile strength 700 N/mm²: 2
Rear stop adjustment range up to: 630 mm
Cutting angle: 2,4 °
Max. strokes for full cutting length: 30 /min
Number of sheet support arms: 2 St
Dimensions and weights
Length approx.: 1712 mm
Width/depth approx.: 1605 mm
Height approx.: 1190 mm
Weight approx.: 1185 kg
Electric Data
Supply voltage: 400 V
Mains frequency: 50 Hz
Suitable for cutting steel and non-ferrous metals
Heavy, stress-free welded steel construction
High quality knife
Sheet metal support arms for large workpieces
Cut line illumination and long holes in the upper cover plate for an optimal view of the cutting edge for cutting on scratches
Manual back gauge 600 mm with millimeter precision adjustment
Photocell for the backgauge area
The foot control leaves both hands free for the material supply
