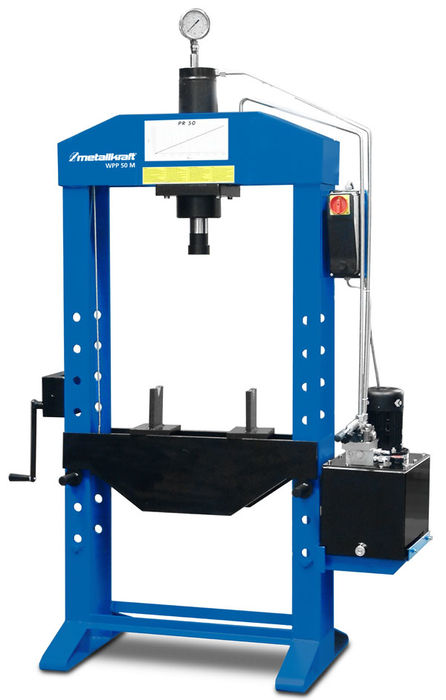

Legupressa WPP 50 M

Kraftur: 30t
Þyngd: 280kg
A - Hæð: 1920mm
B - Breidd án dælu: 990mm
C - Dýpt: 650mm
D - Innanmál: 790mm
E - Dýpt burðarstoða: 200mm
F - Mesta efnishæð: 1030mm
G - Slaglengd stimpils: 160mm
H - Breidd með dælu: 1240mm
For all repair and assembly work, eg: straightening axles, girders, shafts, etc .; Pressing and pressing bearings, bolts and bushings; Pressing and squeezing work; Load tests and welding sample tests; and much more.
Stable welded construction
Robust frame with perforation for the adjustment of the work table
Reliable, particularly precise hydraulic from European production
Pressure build-up by hand or foot operation of the pump lever
By foot pump both hands free for fixation of the workpiece
Pressing pressure readable via manometer
With automatic return of the piston
With safety valve to protect against overload
Quality Made in Europe

Note:
For processing flat material, pressing in bearings, bolts and the like, be sure to use the optional perforated plates.

Pressure force: 50 T
Max. load on prism jaw: 12,5 T
Piston stroke: 150 mm
Piston travel: 500 mm

Dimensions and weights
Clear width: 790 mm
Max. installation height: 1000 mm
Frame depth: 210 mm
Length approx.: 1400 mm
Width/depth approx.: 650 mm
Height approx.: 2000 mm
Weight approx.: 360 kg

Electric Data
Supply voltage: 400 V
Mains frequency: 50 Hz
For all repair and assembly work, eg: straightening axles, girders, shafts, etc .; Pressing and pressing bearings, bolts and bushings; Pressing and squeezing work; Load tests and welding sample tests; and much more.
Stable welded construction
Robust frame with perforation for height adjustment of the press table
With automatic switching from accelerated idling speed to slower working speed of the cylinder
Reliable, particularly precise hydraulic from European production
With safety valve to protect against overload
Quality Made in Europe

Room amenities
Pressing pressure readable via manometer
equipped with double-acting cylinder
including 2-piece prism set for inserting round material
For processing flat material, pressing in bearings, bolts and the like, it is essential to use the optional perforated plates

Pressure force: 50 T
Max. load on prism jaw: 12,5 T
Piston stroke: 250 mm
Lowering speed: 10 mm/s
Press speed: 1,5 mm/s

Dimensions and weights
Clear width: 790 mm
Max. installation height: 1050 mm
Frame depth: 210 mm
Length approx.: 1350 mm
Width/depth approx.: 650 mm
Height approx.: 2290 mm
Weight approx.: 420 kg

Electric Data
Supply voltage: 400 V
Mains frequency: 50 Hz
