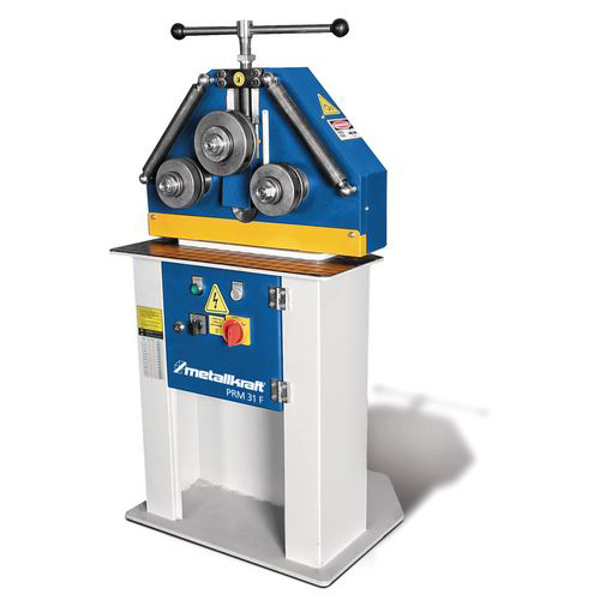

Rörabeygjuvél PRM31F

Dimensions and weights
Length approx.: 600 mm
Width/depth approx.: 800 mm
Height approx.: 1450 mm
Weight approx.: 220 kg

Electric Data
Supply voltage: 400 V
Mains frequency: 50 Hz

Machine data
Shaft diameter top: 30 mm
Shaft diameter bottom: 30 mm
Roller diameter top: 148 mm
Roller diameter bottom: 118 mm
Speed: 4 m/min

Bending performances profile type standard
Square material dimensions [1]/ [2]: 30 mm / 10 mm
Square material min. bending Ø [1]/ [2]: 900 mm / 200 mm
Flat material light axis dimensions bending Ø [1]/ [2]: 80 x 15 mm / 30 x 6 mm
Flat material light axis min. bending Ø [1]/ [2]: 700 mm / 400 mm
Flat material heavy axis dimensions bending Ø [1]/ [2]: 50 x 10 mm / 20 x 6 mm
Flat material heavy axis min. bending Ø [1]/ [2]: 800 mm / 300 mm
UPN profile top rib dimensions [1]/ [2]: 50 x 6 mm / 20 x 3 mm
T profile top rib min. bending Ø [1]/ [2]: 600 mm / 400 mm
Explanation for T profile rib above: Additional spacers may be required
UPN profile outside rib dimensions [1]/ [2]: 50 x 6 mm / 20 x 3 mm
T profile outside rib min. bending Ø [1]/ [2]: 600 mm / 400 mm
UPN profile inside rib dimensions [1]/ [2]: 50 x 6 mm / 20 x 3 mm
T profile inside rib min. bending Ø [1]/ [2]: 600 mm / 400 mm
UPN profile outside leg dimensions [1]/ [2]: U50x25 mm / U30x15 mm
UPN profile outside leg min. bending Ø [1]/ [2]: 600 mm / 40 mm
UPN profile inside leg dimensions [1]/ [2]: U50x25 mm / U30x15 mm
UPN profile inside leg min. bending Ø [1]600 mm
Inside leg min. bending Ø [2]400 mm
Explanations for bending performance, profile type standardThe performance data apply to material with a max. Yield strength of 24kg / mm². Bending power at VA: factor 0,7

Bending performances profile type optional
Square tube dimensions [1]/ [2]: 40 x 3 mm / 30 x 2 mm
Square tube min. bending Ø [1]/ [2]: 1200 mm / 800 mm
Square tube heavy axis dimensions bending Ø [1]/ [2]: 50 x 30 x 3 mm / 40 x 20 x 2 mm
