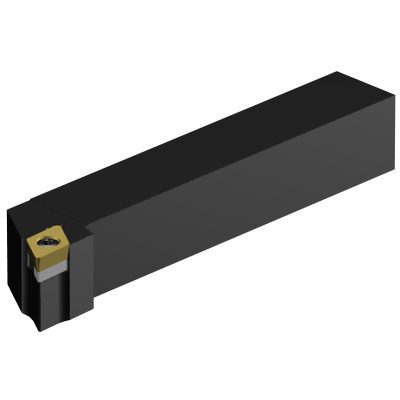

Rennihaldari 20mm

Rennslisbóma frá Sandvik

CoroTurn® 107 eru þessi klassísku Rennslishaldarar frá Sandvik Coromant
Jákvæður haldari með skrúfufestingu á insert sem veitir léttan skurð.

CoroTurn® 107 – For turning of slender components (coromant.com)

Vörumerki: Sandvik

Staða á vöru: Á lager

Vörunúmer: SVSDJCR2020K11

29.636 kr.

Fjöldi: decrease increase

Rennslisbóma frá Sandvik

CoroTurn® 107 eru þessi klassísku Rennslishaldarar frá Sandvik Coromant
Jákvæður haldari með skrúfufestingu á insert sem veitir léttan skurð.

CoroTurn® 107 – For turning of slender components (coromant.com)

Tool cutting edge angle (KAPR): 93 deg

Lead angle(PSIR): -3 deg

Clamping type code(MTP): S: clamp with screw through hole

Insert type(CUTINT_MASTER): DCMT 11T308

Connection – machine side(ADINTMS): Rectangular shank -metric: 20 x 20

Maximum ramping angle (RMPX): 27 deg

Workpiece side body angle (BAWS): 0 deg

Machine side body angle(BAMS): 0 deg

Maximum overhang (OHX): 21.9 mm

Hand (HAND): R

Coolant entry style code (CNSC): 0: without coolant

Coolant exit style code(CXSC): 0: no coolant exit

Shank width(B): 20 mm

Shank height(H): 20 mm

Functional length(LF): 125 mm

Functional width(WF): 25 mm

Functional height(HF): 20 mm

Orthogonal rake angle(GAMO): 0 deg

Inclination angle(LAMS): 0 deg
