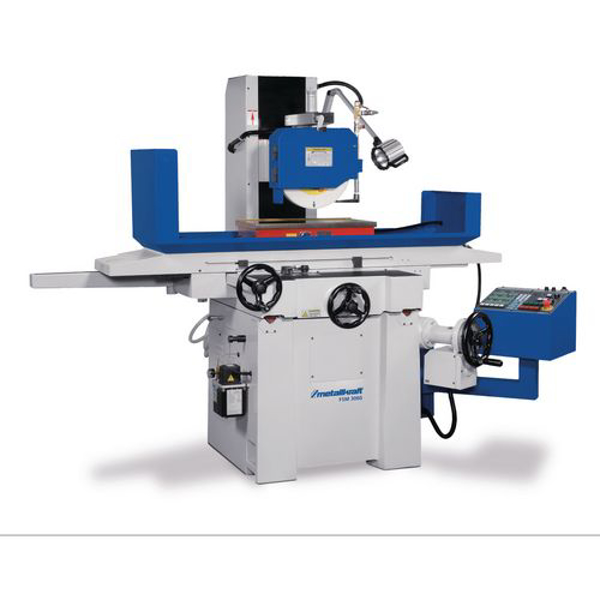

For precision surface grinding in the industrial sector
Maximum stiffness and stability thanks to tension-free re-heated and hardened cast iron construction
High-quality spindle with precision cone roller bearings (circular accuracy 2 microns)
Electromagnetic clamping plate for fixing the workpiece including automatic demagnetization function
Automatic central lubrication for all slides and spindles
Hand scraped and Turcite-B-coated V-flat guides guarantee extremely uniform, low-friction movement and highest precision
Halogen working light dustproof, completely contact-proof and protected against jet water according to IP65
Second grinding wheel flange included in delivery
Automatic feed control AD 5
The fsM series models are equipped with automatic feed control (AD 5). Different grinding cycles are available: surface loops with delivery at the starting point, groove loops with delivery at the starting point, groove loops with delivery at the start and end points. The delivery of the grinding wheel can be individually designed depending on the workpiece. The total grinding size is divided into coarse and fine delivery, the delivery steps can be freely entered, depending on the application, with a minimum resolution of up to 0.001mm. The possibility to program dead runs after a certain number of delivery steps as well as passages for firing after reaching the grinding measure provides the best grinding results.
Dimensions and weights
Length approx.: 2630 mm
Width/depth approx.: 1550 mm
Height approx.: 1800 mm
Weight approx.: 1743 kg
Electric Data
Supply voltage: 400 V
Mains frequency: 50 Hz
Grinding wheel(s)
External diameter: 355 mm
Width: 38 mm
Drill hole: 127 mm
Spindle
Speed: 1450 min¯¹
X axis
Travel speed: 5 - 25 m/min
Slípisteinn í RafmagnspennaRated input power: 950W
Output power: 510W
Belt speed in idle: 9 - 20m/s
Grinding belt width: 6 - 19mm
Grinding belt length: 457mm
Useful length of sanding belt arm: 90mm
Weight (without power cable): 1.8kg
Cable length: 4m
Vibration
Surface grinding: 2.4m/s²
Uncertainty of measurement K: 1.5m/s²
Noise emission
Sound pressure level: 89dB(A)
Sound power level (LwA): 100dB(A)
Uncertainty of measurement K: 3dB(A)
Powerful, compact band file for grinding, burnishing and deburring in difficult to reach places
Metabo Marathon motor with patented dust protection for long service life
Thumbwheel controlled Vario-Constamatic (VC)-Full wave electronics ideal for working on materials requiring customised speeds, and at speeds which remain almost constant under load
Grinding attachment can be swivelled by 270° without tools for perfect adaptation to any working position
Profiled drive roller: reduces slipping of the sanding belt
Tool-free change of sanding belt and adjustable belt guide
Electronic soft start for smooth start-up
Auto-stop carbon brushes to protect the motor
For precision surface grinding in the industrial sector
Maximum stiffness and stability thanks to tension-free re-heated and hardened cast iron construction
High-quality spindle with precision cone roller bearings (circular accuracy 2 microns)
Electromagnetic clamping plate for fixing the workpiece including automatic demagnetization function
Automatic central lubrication for all slides and spindles
Hand scraped and Turcite-B-coated V-flat guides guarantee extremely uniform, low-friction movement and highest precision
Halogen working light dustproof, completely contact-proof and protected against jet water according to IP65
Second grinding wheel flange included in delivery
Automatic feed control AD 5
The fsM series models are equipped with automatic feed control (AD 5). Different grinding cycles are available: surface loops with delivery at the starting point, groove loops with delivery at the starting point, groove loops with delivery at the start and end points. The delivery of the grinding wheel can be individually designed depending on the workpiece. The total grinding size is divided into coarse and fine delivery, the delivery steps can be freely entered, depending on the application, with a minimum resolution of up to 0.001mm. The possibility to program dead runs after a certain number of delivery steps as well as passages for firing after reaching the grinding measure provides the best grinding results.
Dimensions and weights
Length approx.: 2630 mm
Width/depth approx.: 1550 mm
Height approx.: 1800 mm
Weight approx.: 1743 kg
Electric Data
Supply voltage: 400 V
Mains frequency: 50 Hz
Grinding wheel(s)
External diameter: 355 mm
Width: 38 mm
Drill hole: 127 mm
Spindle
Speed: 1450 min¯¹
X axis
Travel speed: 5 - 25 m/min
