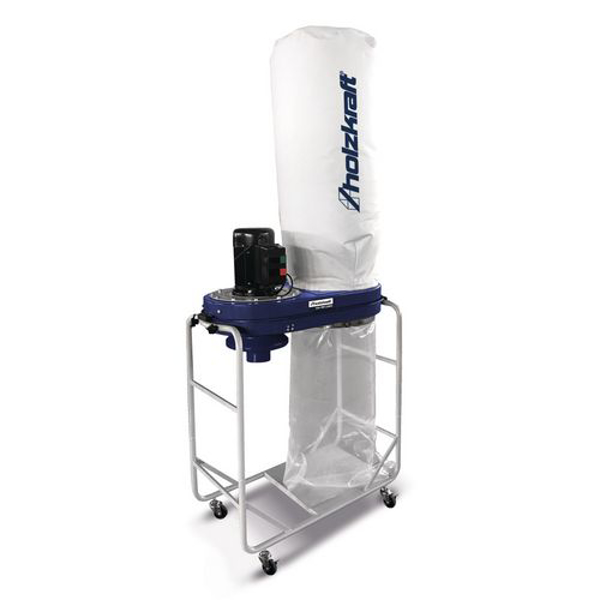

Spónsuga ASA 1901

Mótor: 750W
Innsogsstútur: 100mm
Sog: 844m³/klst
Undirþrýstingur: 1233Pa
Stærð filters: 1.3m²
Stærð safnpoka: 100l
Stærð: 750 x 380 x 1850mm
Þyngd: 36kg
For milling, planing and sawdust (not suitable for dust)
180° rotatable suction unit enables suction routing from below or above
Stable fan wheel made of metal
Standard with high-quality chassis for better stability and easy manoeuvring
Quick-release fasteners for filter and chip sack
Fine filter bag double woven

Rated volume flow: 1900 m³/h
Max. negative pressure: 1700 Pa
Filter surface area: 1.92 m²
Chip collection volume: 110 l
Extraction duct inlet outside nominal width: 203 mm
Extraction duct outlet outside nominal width: 2x100 mm
Idle Speed: 2950 min¯¹

Dimensions and weights
Length approx.: 1000 mm
Width/depth approx.: 500 mm
Height approx.: 2100 mm
Weight approx.: 39 kg

Electric Data
Motor input: 1.5 kW
Supply voltage: 230 V
Phase(s): 1 Ph
Current type: AC
Mains frequency: 50 Hz

Noise emission
Max. sound pressure level: 85,7 dB(A)
